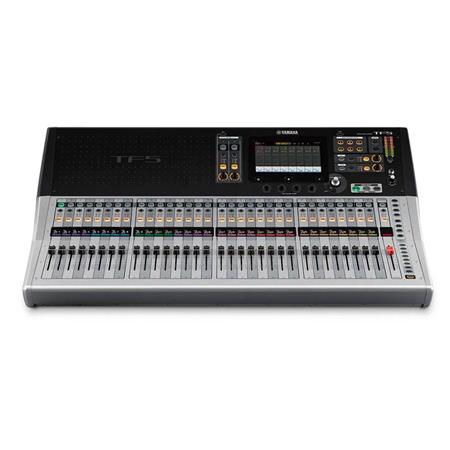

Yamaha TF5 Digital Mixing Console

While maintaining Yamaha's commitment to intuitive operation and high-quality sound, the TF5 Digital Mixing Console takes audio production to the next level. This advanced console, with its impressive 48 input channels and 33 motor faders, is perfectly suited for larger applications, offering unparalleled flexibility in recording and mixing multiple audio sources.

Yamaha's digital consoles are renowned for their design, which is informed by feedback from leading engineers worldwide. The TF5 continues this tradition, featuring the highly regarded Selected Channel and Centralogic interfaces, ensuring efficient and intuitive operation.

This state-of-the-art console integrates the latest touch-screen technology, offering an evolved experience in console operation. The TF5 is more than just a mixing console; it's a sophisticated system that includes practical presets and scenes, a refined design, and software applications that integrate seamlessly for smooth setup and operation.

The TF5 Digital Mixing Console introduces TouchFlow Operation, a revolutionary concept in console interfaces. This feature offers unprecedented comfort and convenience in small consoles, making it an ideal choice for a wide range of users and applications. Whether you're in a professional recording studio, managing live sound applications, or any setting requiring high-quality audio mixing, the TF5 Digital Mixing Console delivers superior performance.

Key Features

• 33 motor faders (32 channels + 1 master)

• 48 input mixing channels (40 mono + 2 stereo + 2 return)

• 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses

• 8 DCA groups with Roll-out

• 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

• 16 analog XLR outputs

• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

• 1 expansion slot for NY64-D audio interface card

• TouchFlow Operation - smooth, natural control flow

• Intuitive user interface optimized for touch panel operation

• Touch & turn knob offers extra control precision

• 1-knob COMP & 1-knob EQ: One knob to dial in the ideal sound

• GainFinder supports precision gain setup

• QuickPro Preset provides instant access to pro sound setups

• DCA roll-out enhances group control

• Comprehensive fader bank section

• TF Editor offline editing plus showtime

• TF StageMix for wireless mixing control

• Personal monitoring with MonitorMix

• Recallable D-PRE microphone preamplifiers

• Powerful processors and effects

• NY64-D expansion slot (64 in/ 64 out) for connection to a Dante network

• Tio1608-D high-performance stagebox solution that's simple to set up

This mixing console is designed to meet the highest standards of today's audio professionals, offering unparalleled sound quality, versatility, and performance.

Specifications

Fader Configuration:

• 32+1 Master

Input Channels:

• 48 (40 mono + 2 stereo + 2 return)

Mixing Capacity:

• Main Buses: 3 (Left, Right + Sub)

• Aux Buses: 8 mono + 6 stereo

• Groups: 8 DCA Groups

I/O Connectors:

• Inputs: 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)

• Outputs: 16 (XLR)

• Expansion Slot: 1

Signal Processors:

• 8 Effects + 10 GEQ

Recording:

• via Windows/Mac: 34x34 USB Audio Interface

• via USB Storage Device: 2-track

Sampling Frequency:

• Internal Clock: 48 kHz

Signal Delays:

• Less than 2.6 ms, INPUT to OMNI OUT, Fs=48kHz

Fader:

• 100 mm motorized, Resolution = 10-bit, +10 dB to -138 dB, -Infinity dB all faders

Frequency Response:

• +0.5, -1.5 dB 20Hz-20kHz, refer to +4 dBu output at 11kHz, INPUT to OMNI OUT

Total Harmonic Distortion:

• Less than 0.05% 20Hz-20kHz at +4dBu into 600 Ohms, INPUT to OMNI OUT, Input Gain = Min.

Hum & Noise:

• -128 dBu typ., Equivalent Input Noise, Input Gain = Max.

• -85 dBu, Residual output noise, ST master off

Dynamic Range:

• 110 dB typ., DA Converter

• 107 dB typ., INPUT to Omni OUT, Input Gain = Min.

Crosstalk at 1kHz:

• -100dB, adjacent INPUT/OMNI OUT channels, Input Gain = Min.

Power Requirements:

• Wattage: 120W

• Voltage and Hertz: 100-240 V 50/60Hz

Temperature Range:

• Operating temperature range: 0 to 40°C / 32 to 104°F

• Storage temperature range: -20 to -60°C / -4 to -76°F

Analog Inputs 1:

• Input Terminals: INPUT 1-32, ST IN 1,2

• GAIN: -6 dB / +66 dB (INPUT 1-32)

• Load Impedance: 7.5 kOhms (INPUT 1-32); 10 kOhms (ST IN 1,2)

• For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-32); 600 ohm lines (ST IN 1,2)

• Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-32); -30 dBV (31.6 V) (ST IN 1,2)

Analog Inputs 2:

• Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-32); -10 dBV (316 mV) (INPUT 1-32)

• Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-32); +10 dBV (3.16 V) (ST IN 1,2)

• Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-32); RCA pin jack unbalanced (ST IN 1,2)

Analog Outputs:

• Output Terminals: OMNI OUT 1-16, PHONES

• Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES)

• For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES)

• GAIN SW: +24 dBu position (default) (OMNI OUT 1-16)

• Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES)

• Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES)

• Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES)

Digital input/output:

• Terminals: USB (TO HOST)

• Format: USB

• Data length: 24bit

• Audio: 34ch input / 34ch output, PCM

• Connector: USB (B type)

• Terminals: iPad

• Format: USB

• Audio: Playback: MP3 or WAV file data / Record: WAV file data

• Connector: USB (A type)

Control I/O:

• Terminals: NETWORK

• Format: IEEE802.3

• Level: 10BASE-T/100Base-TX

• Connector: RJ-45

• Terminals: FOOT SW

• Connector: TS Phone

Dimensions (W x H x D):

• 866 x 225 x 599mm / 34.09 x 8.86 x 23.58"

Net Weight:

• 20kg / 44.09lbs

UPC Code: 086792992877

What's In The Box?

• Yamaha TF5 Digital Mixing Console
• Quick Guide
• Power Cord
• CUBASE AI Download Information
• Yamaha 1 Year Limited Warranty
