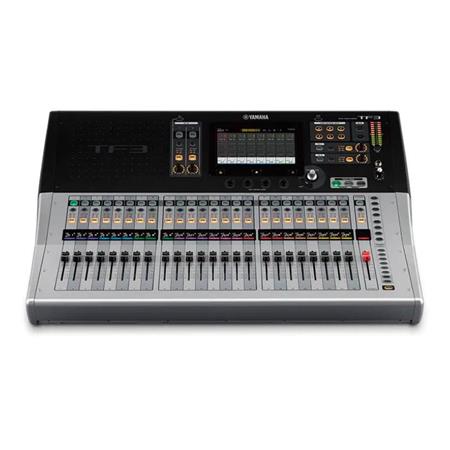

he Yamaha TF3 Digital Mixing Console is a compact yet powerful audio mixer designed for a wide range of applications. Here are the key features:
Ample Input Capacity: With 25 motor faders (24 channels + 1 master), the TF3 provides hands-on control.
48 Input Mixing Channels: It offers 40 mono channels and 2 stereo channels, along with 2 return channels.
Flexible Buses: The console includes 20 Aux buses (8 mono + 6 stereo) and a Stereo bus.
DCA Groups: It features 8 DCA groups with Roll-out functionality.
Quality Preamps: The Recallable D-PRE™ preamplifiers ensure sound quality that satisfies discerning professionals.
Analog Inputs: The TF3 has 24 XLR-1/4" combo mic/line inputs and 2 analog RCA pin stereo line inputs.
Analog Outputs: It provides 16 analog XLR outputs.
Digital Recording: With 34x34 USB Audio Interface, you can record via USB 2.0 or a USB storage device.
Optional Expansion: The console supports an expansion slot for the NY64-D audio interface card.
Experience intuitive control and creative freedom with the Yamaha TF3, suitable for live sound reinforcement, recording, and more!
Specifications
Outline:
- Fader Configuration: 24 + 1 (Master)
- Mixing Capacity:
* Input Channels: 48 (40 mono + 2 stereo + 2 return)
* Aux Buses: 20 (8 mono + 6 stereo)
* Stereo Buses: 1
* Sub Buses: 1
- Input Channel Functions:
* 8 DCA Groups
- I/O:
* Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
* Outputs: 16 (XLR)
- Expansion Slots: 1
- On-board Processors:
* DSP: 8 Effects + 10 GEQ
* USB: 34x34 USB Audio Interface, 2-track recording via USB Storage Device
- General Specifications:
* Sampling Frequency Rate: Internal 48 kHz
* Signal Delay: Less than 2.6 ms (INPUT to OMNI OUT, Fs=48 kHz)
* Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
* Total Harmonic Distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600Ω (INPUT to OMNI OUT, Input Gain=Min.)
* Frequency Response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1 kHz, INPUT to OMNI OUT
* Dynamic Range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
* Hum & Noise Level:
- Equivalent Input Noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
The Yamaha TF3 offers ample input capacity, hands-on control, and seamless integration for a wide range of applications.
Key Features
Ample Input Capacity:
- 25 motor faders (24 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
Flexible Buses:
- 20 Aux buses (8 mono + 6 stereo)
- Stereo bus and Sub bus
DCA Groups:
- 8 DCA groups with Roll-out functionality
Quality Preamps:
- Recallable D-PRE™ preamplifiers ensure sound quality that satisfies even the most discerning professionals.
Analog Inputs:
- 24 XLR-1/4" combo mic/line inputs
- 2 analog RCA pin stereo line inputs
Analog Outputs:
- 16 analog XLR outputs
Digital Recording:
- 34x34 USB Audio Interface for recording via USB 2.0 or a USB storage device
Optional Expansion Slot:
- Supports an expansion card such as the NY64-D audio interface card
The Yamaha TF3 offers intuitive control and creative freedom, making it suitable for live sound reinforcement, recording, and other applications.
