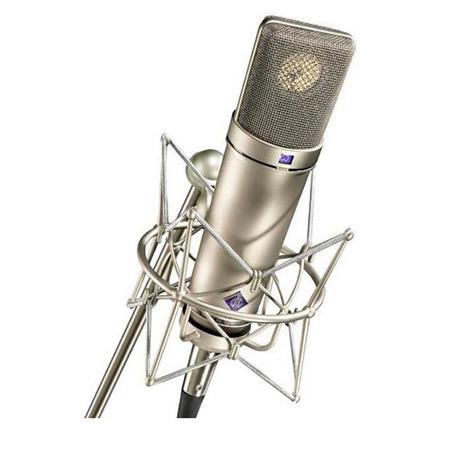

The Neumann U 87 Ai Set Z is a legendary large-diaphragm condenser microphone that has shaped the sound of countless hit records for the past 50 years. Its smooth and refined sound is as iconic as its elegant exterior design. The U 87 Ai is the standard microphone for speech and vocals, and its three selectable polar patterns (omnidirectional, cardioid, and figure-8) make it adaptable to a wide range of applications. With very low self-noise and classic sound, the U 87 Ai is the epitome of a large diaphragm condenser microphone. Whether in the studio or on stage, this microphone delivers exceptional performance and remains an essential choice for recording professionals worldwide.
Specifications
Acoustical Operating Principle: Pressure gradient transducer
Directional Patterns: Omnidirectional, cardioid, figure-8
Frequency Range: 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kohm:
- Omnidirectional: 20 mV/Pa ± 1 dB
- Cardioid: 28 mV/Pa ± 1 dB
- Figure-8: 22 mV/Pa ± 1 dB
Rated Impedance: 200 ohms
Rated Load Impedance: 1 kohms
Equivalent Noise Level, CCIR:
- Omnidirectional: 26 dB
- Cardioid: 23 dB
- Figure-8: 25 dB
The Neumann U 87 Ai is a versatile large-diaphragm condenser microphone with three selectable polar patterns.
Key Features
Legendary Sound:
- The Neumann U 87 Ai is probably the best-known and most frequently used studio microphone worldwide.
- Its smooth and refined sound is as iconic as its elegant exterior design.
Three Selectable Polar Patterns:
- Choose from omnidirectional, cardioid, and figure-8 patterns.
- Adapt to a wide range of recording scenarios.
Unique Combination of Linearity and Character:
- Flat on-axis frequency response with a touch of charisma.
- Instantly recognizable sound that just “sounds right.”
Classic Neumann Engineering:
- Dual-diaphragm capsule design similar to the legendary U 67.
- FET circuit with minimal signal path and transformer-balanced output for maximum signal integrity.
Versatile Applications:
- Ideal for vocals, speech, instruments, and more.
- Balanced response in all three directional patterns.
Elegant Design:
- Iconic tapered body and headgrille design.
- A studio microphone that looks and sounds exceptional.
The Neumann U 87 Ai remains an essential choice for recording professionals, whether in the studio or on stage.
