Accompaniment Styles: Add a "backing band" to your performances while maintaining complete control over chord changes and arrangements.
-
Joystick Controller: Control a wide variety of pitch and modulation combinations to master various world music styles.
-

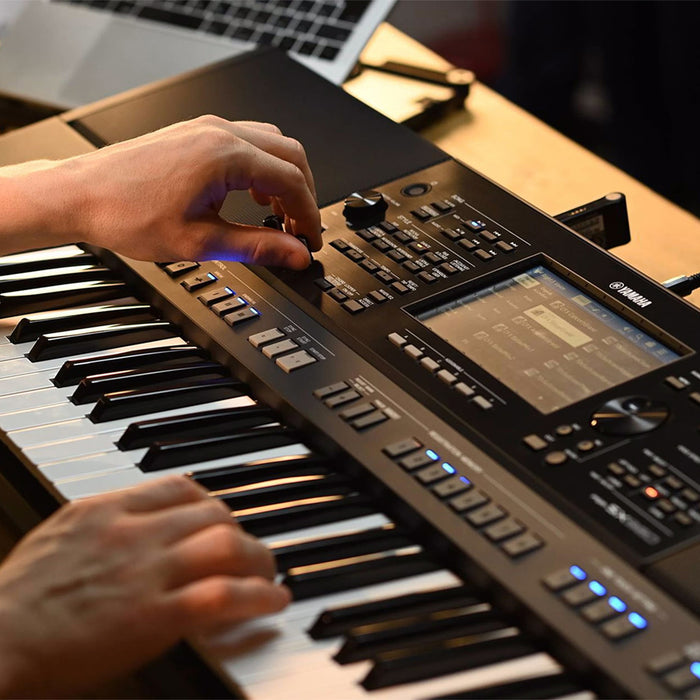

Assignable Real-Time Control Knobs: Adjust aspects of Voices, Styles, and more to elevate your performances.
-
Chord Looper: Record chord progressions for the Style engine to loop, freeing you to experiment with two hands or soloing without playing the changes.
-
Super Articulation 2 (SA2) Voices: Automatically provide natural instrument expressions, delivering an authentic and captivating experience.
-
Super Articulation + Voices: Control subtle sound nuances like fret noises and breaths.
-
Style Section Reset: Ensures your virtual drummer stays on beat, useful for songs with random 3/4 or 6/4 bars.
-
Voice & Style Expansion Packs: Customize your PSR-SX with a wide range of additional content from around the world.
-
Expansive Soundfield Speakers (ESS): Uniquely designed cone delivers an immersive listening experience.
-
Vocal Harmony Engine: Automatically adds gorgeous, multilayered harmonies to your voice with a plugged-in mic.
Specifications
Control Interface: Keyboard:
-
Number of Keys: 61
-
Keyboard Type: Organ (FSB), Initial Touch
-
Touch Response: Normal, Soft 1, Soft 2, Hard 1, Hard 2
Control Interface: Other Controllers:
-
Joystick: Yes (Assignable)
-
Control Knobs: 2 (Assignable)
-
Assignable Buttons: 6 + 2 (With LED Indicator)
Control Interface: Display:
-
Display Type: TFT Color Wide VGA LCD
-
Display Size: 800 x 480 dots (7")
-
Touch Screen: Yes
-
Color: Yes
-
Language: English, German, French, Spanish, Italian, Chinese
Control Interface: Panel:
-
Language: English, Chinese
Voices: Tone Generation:
-
Tone Generating Technology: AWM Stereo Sampling, AEM technology
Voices: Polyphony:
-
Number of Polyphony (Max.): 128
Voices: Preset:
-
Number of Voices: 1,587 Voices + 63 Drum/SFX Kits + 480 XG Voices
-
Featured Voices: 12 S.Articulation2, 15 S.Articulation+, 340 S.Articulation, 55 Organ Flutes, 82 Mega Voice
Voices: Compatibility:
-
Compatibility: XG, GM, GM2 (for Song Playback)
Voices: Expandability:
-
Expansion Voice: Yes (approx. 2GB)
Voices: Part:
-
Part: Right 1, Right 2, Right 3, Left
Effects: Types:
-
Reverb: 59 Presets + 30 User
-
Chorus: 107 Preset + 30 User
-
DSP: 358 Preset (with VCM) + 30 User
-
Insertion Effect: 1-13: 358 Preset (with VCM) + 30 User
-
Master Compressor: 5 Preset + 30 User
-
Master EQ: 5 Preset + 30 User
-
Part EQ: 28 Parts
Effects: Vocal Harmony:
-
Number of Presets: Vocal Harmony: 54, Synth Vocoder: 20
-
Number of User Settings: 60 (The number is the total of Vocal Harmony and Synth Vocoder)
Accompaniment Styles: Preset:
-
Number of Preset Styles: 575
-
Featured Styles: 520 Pro Styles, 49 Session Styles, 6 Free Play Styles
-
Fingering: Single, Fingered, OnBass, Multi, AI Fingered, Full / AI Full, Smart Chord
-
Style Control: 3x INTRO, 4x MAIN VARIATION, 4x FILL, BREAK, 3x ENDING
Accompaniment Styles: Compatibility:
-
Compatibility: Style File Format, Style File Format GE
Accompaniment Styles: Expandability:
-
Expansion Style: Yes (Internal Memory)
-
Expansion Audio Style: Yes (Internal Memory)
Accompaniment Styles: Other Functions:
-
Chord Looper: Yes
-
Style Section Reset: Yes
-
Style Section Change Timing: Yes
-
Style Section Time Signature: Yes (per Section)
-
Style Dynamics Control: Yes (with knobs / pedal)
-
One Touch Setting (OTS): 4 for each Style
Songs: Preset:
-
Number of Preset Songs: 1 Demo Song, 2 Preset Songs
Songs: Recording:
-
Number of Songs: Unlimited (depends on the drive capacity)
-
Number of Tracks: 16
-
Data Capacity: Approx. 3 MB/Song
-
Recording Function: Quick Recording, Multi Recording, Step Recording
Songs: Compatible Data Format:
-
Playback: SMF (Format 0 & 1), XF
-
Recording: SMF (Format 0)
Multi Pads: Preset:
-
Number of Multi Pad Banks: 500 banks x 4 Pads
Multi Pads: Audio:
-
Audio Link: Yes
Functions: Voices:
-
Harmony/Echo: Yes (with Arpeggio)
-
Panel Sustain: Yes
-
Mono/Poly: Yes (w/ Legato, Xfd (improved), VeloToPrtTime, Fast Playing Portamento, Velocity Limit)
-
Voice Information: Yes
Functions: Styles:
-
Style Creator: Yes
-
OTS Information: Yes
Functions: Songs:
-
Song Creator: Yes
-
Score Display Function: Yes
-
Lyrics Display Function: Yes
Functions: Multi Pads:
-
Multi Pad Creator: Yes
Functions: Registration:
-
Number of Buttons: 8
-
Control: Registration Sequence, Freeze
Functions: Playlist:
-
Number of Records: 2,500 (max.) Records per Playlist file (add search/sort function improved)
Functions: Search:
-
Search: Registration Bank
Functions: Audio Recorder/Player:
-
Recording Time (max.): 80 minutes/Song
-
Recording: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo)
-
Playback: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
-
Time Stretch: Yes
-
Pitch Shift: Yes
-
Vocal Cancel: Yes
Functions: Demo/Help:
-
Demonstration: Yes
Functions: Overall Controls:
-
Metronome: Yes
-
Tempo Range: 5 - 500, Tap Tempo
-
Transpose: -12 - 0 - +12
-
Tuning: 414.8 - 440 - 466.8 Hz
-
Octave Button: -3 - 0 - 3
-
Scale Type: 9 Preset
-
Sub Scale Setting: Yes
Functions: Miscellaneous:
-
Direct Access: Yes
-
Text Display Function: Yes
-
Wallpaper Customization: Yes
-
Display Out: Yes (via USB to Device)
Functions: Bluetooth:
-
Bluetooth: Yes (Audio)
Storage:
-
Internal Memory: Yes (approx. 4 GB)
-
External Drives: USB Flash Memory (via USB to DEVICE)

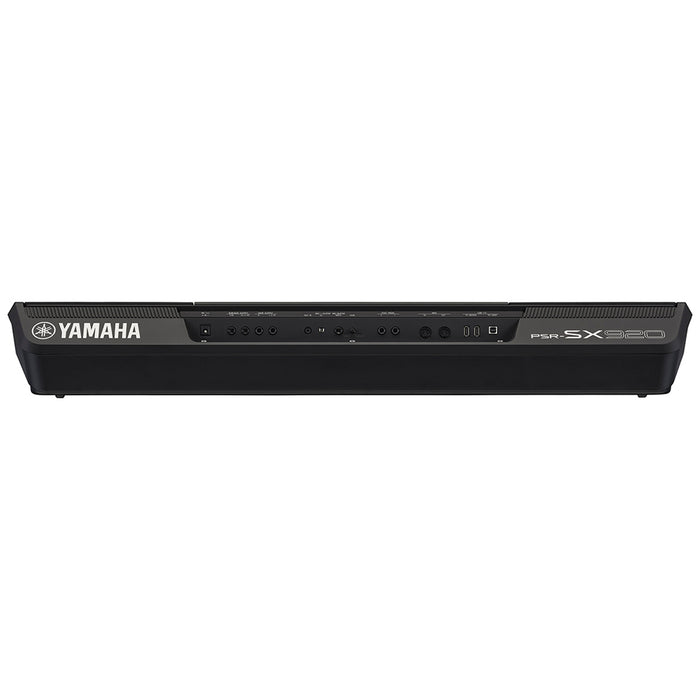

Connectivity:
-
Headphones: Yes
-
Microphone: 1x Microphone/Guitar
-
MIDI: IN, OUT
-
Aux In: Stereo mini jack
-
LINE OUT: L/ L+R, R, Sub 1/2
-
Foot Pedal: Assignable, Sw or Vol x2
-
USB to Device: USB 2.0 x2
-
USB to Host: USB 2.0 x1
Amplifiers and Speakers:
-
Amplifiers: 2x (15W + 10W)
-
Speakers: 2x 13cm FSP + 2.5cm, (Dome type)
Power Supply:
-
Power Supply: PA-300C or an equivalent recommended by Yamaha
-
Power Consumption: 24 W
-
Auto Power Off Function: Yes
General:
-
Color: Black
-
Dimensions (W x D x H): 40 x 17 x 5.5" (101.60 x 43.18 x 13.97 cm)
-
Weight: 25.57 lbs (11.6 kg)
Other:
-
UPC Code: 889025157438
