Yamaha A-S2200 2-Ch Integrated Amplifier, Black

SKU YAAS2200BL
Original price $4,499.95 - Original price $4,499.95
Original price $4,499.95
$4,499.95
$4,499.95 - $4,499.95
Current price $4,499.95

Enhance your auditory experience with the Yamaha A-S2200 2-Channel Integrated Amplifier, a testament to the fusion of superior craftsmanship and acoustic innovation. Designed to resonate with the most discerning audiophiles, the A-S2200 stands as a pinnacle of high-fidelity sound, delivering a powerful, high-quality, and reliable performance that is both elegant and emotionally charged.

Crafted for absolute musicality, this luxuriously beautiful instrument embodies the essence of true Hi-Fi sound. The A-S2200's robust construction is evident in its substantial heft, a feature that users have noted underscores its solid build and exceptional sound quality.

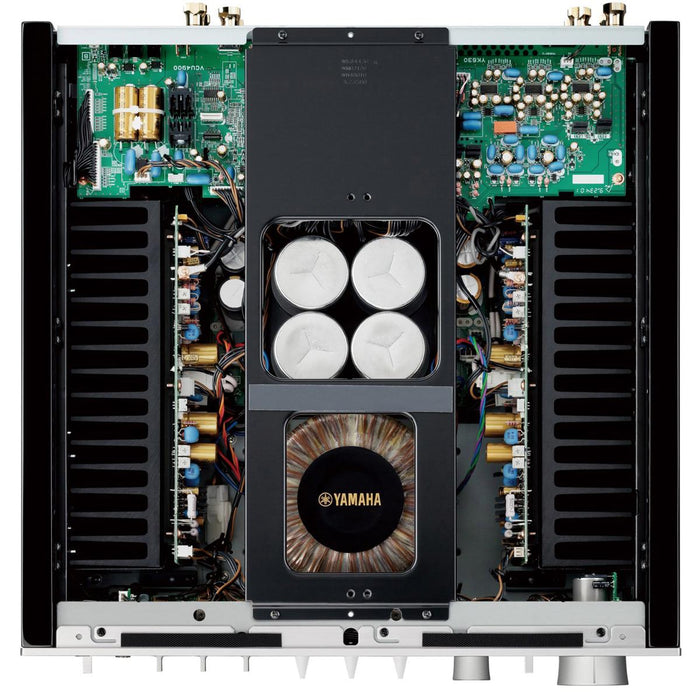

The heart of the A-S2200's superior audio performance lies in its toroidal transformer, a component celebrated for its exceptional energy retention and minimal electromagnetic interference. This allows the amplifier to faithfully reproduce the full emotional impact of your favorite music, ensuring that every nuance and dynamic is conveyed with clarity and depth.

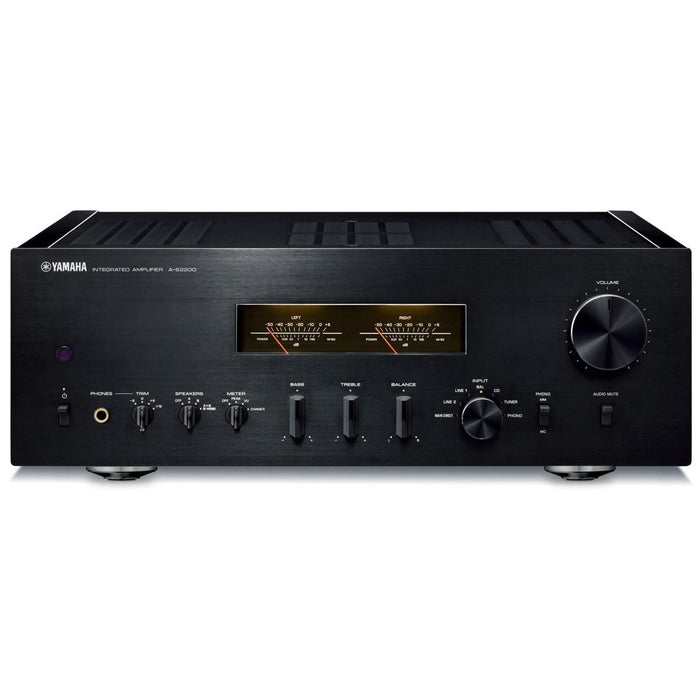

Visually, the A-S2200 captivates with its gorgeous level meters, reminiscent of Hi-Fi's golden age while simultaneously representing the high standards of contemporary audio enthusiasts. The meters' softly illuminated LEDs not only provide a visual representation of the music's dynamics but also add an inviting warmth to your listening space.

Yamaha's commitment to openness in sound is evident in the A-S2200's design, which aims to transport the listener to the heart of the performance. The amplifier's expansive soundstage is achieved through meticulous design choices, including the use of thick wires for ground connection, which contribute to the unit's overall low impedance and wide sonic landscape.

The A-S2200's original speaker terminals, meticulously carved from pure brass, exemplify the attention to detail that Yamaha invests in every aspect of the amplifier's design. These terminals ensure a secure, high-quality connection that can be easily tightened by hand, further enhancing the purity of the sound.

Embracing the groove and rhythm of music, the A-S2200 presents every composition as the artist intended, with a Mechanical Ground Concept that underpins the unit's expressive and rhythmic bass. This concept is reinforced by the direct bolting of key components to the chassis, and the robust, chrome-plated brass feet, which provide a stable foundation that virtually eliminates unwanted vibration.

In choosing the Yamaha A-S2200 2-Channel Integrated Amplifier, you are not only selecting a device with a stellar 5.0 user rating but also entrusting your audio experience to a brand renowned for its dedication to acoustic excellence. Elevate your listening to an art form with the A-S2200, where every note is a brushstroke in the masterpiece of your musical journey.

Key Features
  • Fully balanced circuit design from input to speaker out

  • Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound

  • Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era

  • Thick wires for ground connection contribute to low impedance design for a wide and open sound stage

  • Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

This amplifier is designed to meet the highest standards of today's audiophiles, offering unparalleled sound quality, durability, and emotional connection to the music.



Specifications

Color: Black

Rated Output Power (2-channel driven):

  • 8 Ohm: 90 W + 90 W

  • 4 Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)

Dynamic Power:

  • 8 Ohm: 105 W + 105 W

  • 6 Ohm: 135 W + 135 W

  • 4 Ohm: 190 W + 190 W

  • 2 Ohm: 220 W + 220 W

IEC Output Power:

  • 8 Ohm: 95 W + 95 W (1 kHz, 0.07% THD)

Maximum Effective Output Power:

  • 8 Ohm: 120 W + 120 W

  • 4 Ohm: 190 W + 190 W

Power Bandwidth (2-channel driven):

  • 8 Ohm: 10 Hz to 50 kHz (0.1% THD, 50 W)

Damping Factor:

  • 8 Ohm: 250 or higher (1 kHz)

Input Sensitivity:

  • PHONO (MC): 150 micro Vrms / 50 Ohm

  • PHONO (MM): 3.5 mVrms / 47 kOhm

  • CD (or similar): 200 mVrms / 47 kOhm

  • MAIN IN: 1 Vrms / 47 kOhm

  • BAL 1/BAL: 200 mVrms / 100 kOhm

Maximum Input:

  • PHONO (MC): 2.0 mVrms

  • PHONO (MM): 50 mVrms

  • CD (or similar): 2.80 Vrms

  • BAL: BYPASS: 2.80 Vrms

  • ATT.: 5.60 Vrms (-6 dB)

Rated Output Voltage:

  • LINE 2 OUT: 200 mVrms / 1.5 kOhm

  • PRE OUT: 1 Vrms / 1.5 kOhm

Headphone Jack Rated Output Power:

  • 50 mW + 50 mW (1 kHz, 32 Ohm, 0.2% THD)

Frequency Response:

  • 5 Hz to 100 kHz: +0 / -3 dB

  • 20 Hz to 20 kHz: +0 / -0.3 dB

Deviations from RIAA Equalizer:

  • PHONO (MM/MC): +/-0.5 dB

Total Harmonic Distortion Plus Noise:

  • 2-channel driven:

    • PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%

    • PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%

    • CD (or similar)/BAL 1/BAL 2 - SPEAKERS OUT, 50 W/8 Ohm: 0.035%

Signal-to-Noise Ratio:

  • PHONO (MC): 90 dB

  • PHONO (MM): 96 dB

  • CD (or similar): 110 dB

  • BAL 1/BAL 2: 114 dB

Residual Noise: 33 micro Vrms

Channel Separation:

  • PHONO (MC): 66/77 dB or higher

  • PHONO (MM): 90/77 dB or higher

  • CD (or similar)/BAL: 74/54 dB or higher

Tone Control Characteristics:

  • BASS: Boost/cut: 50 Hz / +/-9 dB, Turnover frequency: 350 Hz

  • TREBLE: Boost/cut: 20 kHz / +/-9 dB, Turnover frequency: 3.5 kHz

Power Supply: AC 120 V, 60 Hz

Power Consumption: 350 W

Standby Power Consumption:

  • OFF mode: 0.1 W

  • Standby mode: 0.2 W

Dimensions (W x H x D): 17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35 cm)

Weight: 50 lbs (22.6 kg)

UPC Code: 027108958637



What's In The Box?
  • A-S2200 2-Channel Integrated Amplifier (Black)
  • Remote Control
  • 2x Batteries
  • Power Cable
  • Owner's Manual
  • Safety Brochure
  • Yamaha 2 Year Limited Warranty



Warranty
This product has a limited warranty of 24 months.
